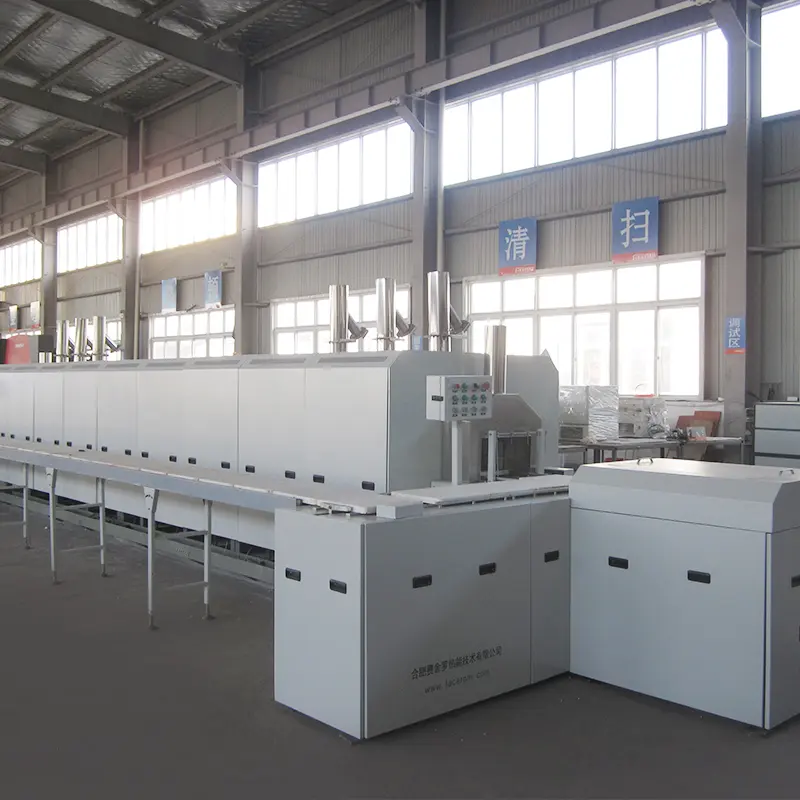

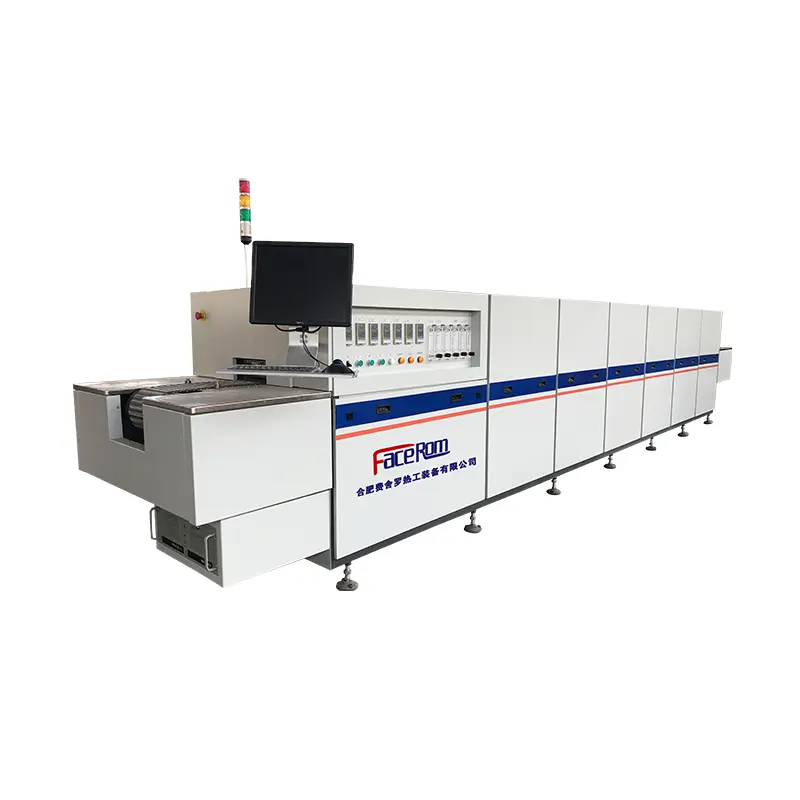

1600℃ 8 Zones Advanced Ceramics Pusher Sintering Kiln Furance
- FTB-34/24/18
- 8
- 1600℃
- 120-250mm
- 18500mm
Application
It is mainly used in the continuous production sintering process of PTC, NTC, MLCC and other electronic components, ceramic filters, ceramic inserts, cell phone ceramic backsheets, ceramic substrates, inductor powders, and other products.
Features
1. Working temperature RT-1600℃
2. The adiabatic material adopts imported energy-saving lightweight foam brick masonry, with high strength and no slagging.
3. Unique large dome cavity structure, good stability, uniform furnace temperature and good product consistency.
4. Classic screw transmission mechanism, smooth propulsion, no crawling and jittering.
5. Fully automatic rotary operation, reliable operation with PLC control.
6. Temperature control mode is SCR automatic voltage adjustment, with soft start, soft shutdown, constant current/voltage and other functions
7. Japan imported control instrument, precise control.
Additional Options:
Computer integrated control system
| Model. | FTB-27/28/12 | FTB-34/16/10 | FTB-34/20/13 | FTB-34/24/18 |
| Push Plate Size | 270mm×270×30mm or 340mm×340×30mm | |||
| Effective Height | 120-250mm | |||
| Controllable Temperature Zones | 12 | 10 | 13 | 8 |
| Control Accuracy | ±1℃,Smart Meter | |||
| Operating Temperature | RT-1600℃ | |||
| Heating Elements | KTL Resistance Wire/Silicon Carbon Rod/Silicon Molybdenum Rod | |||
| Belt Speed Range | 40-200mm/Min, Frequency Conversion Infinitely Adjustable Speed, Digital Display | |||
| Propulsion System | Screw | |||
| Equipment Length | 17500mm | 12000mm | 15800mm | 18500 mm |
