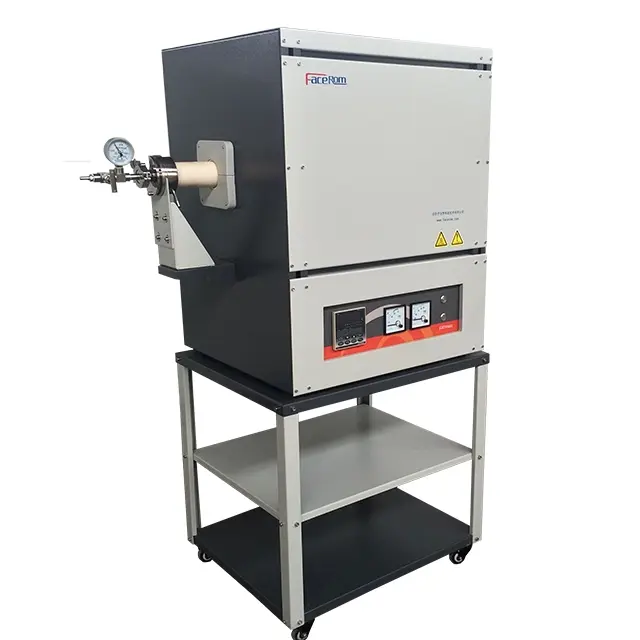

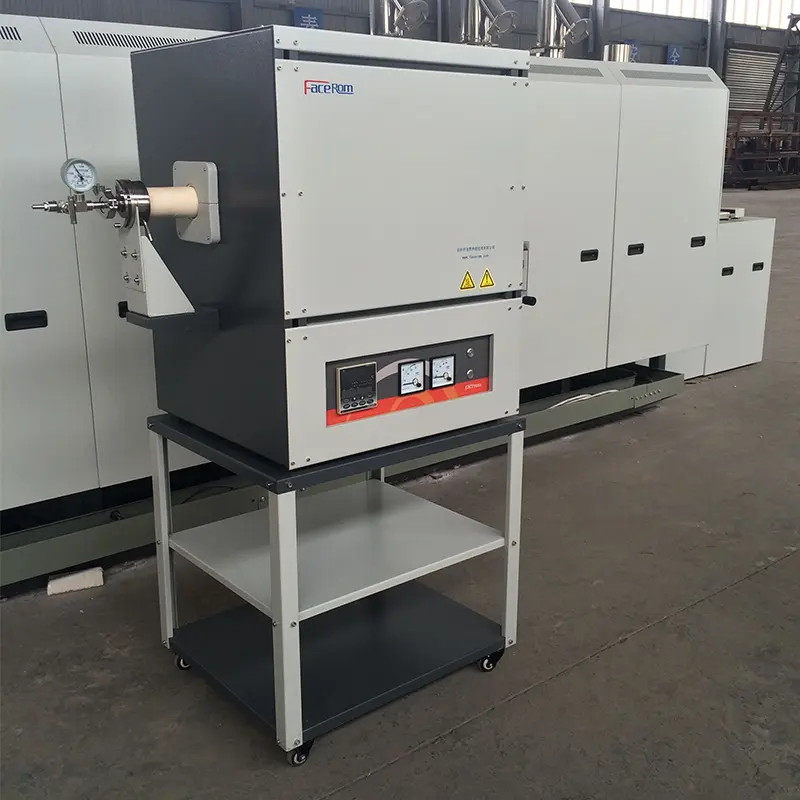

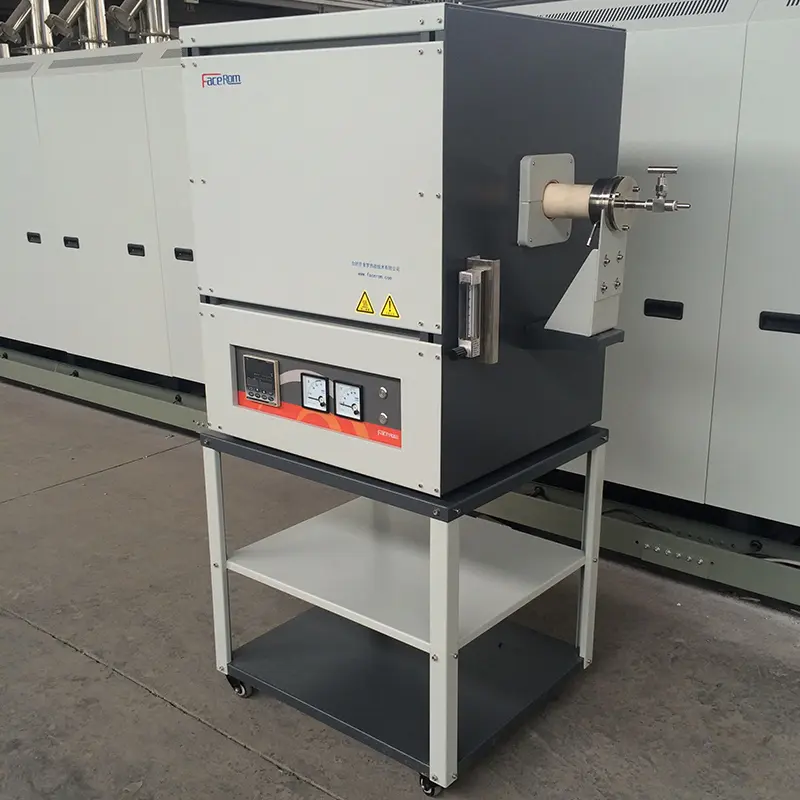

High Temperature Lab Tube Furnace 1700C

Applications

Adopt 1800 type U type silicon molybdenum rod for heating, spec

ial fixture, easy to disassemble. High purity 99 corundum tube as furnace chamber, clean chamber and stable use. For different vacuum requirements, different atmospheres in the high-temperature experimental environment.

Good peripheral expandability to meet a variety of high temperature experiments in universities and research institutes.

Features

1. Working temperature RT～1600℃;

2. Intelligent programmable temperature control instrument for precise temperature control. Can edit, store and call multi-segment program;

3. furnace shell structure, double-layer furnace shell air-cooled structure;

4. stainless steel double-layer sealed water-cooled flange, inlet and outlet valves using American standard needle valve;

5. adjustable flange support structure at both ends to extend the service life of corundum tubes;

6. LED high-strength anti-destructive all stainless steel button, durable;

7. over-temperature protection function, when the temperature exceeds the allowable set value automatically power off;

8. safety protection when the furnace body leakage automatic power off;

9. B-type thermocouple, accurate temperature control

10. Heating element U-type silicon molybdenum rod

Additional Options

Vacuum system (rotary vane mechanical pump, diffusion pump unit, molecular pump unit);

Atmospheric system (float flow meter, mass flow meter);

Monitoring system: (temperature recorder, touch screen remote monitoring);

Note: options need to be configured to expand the platform

Technical Parameters
