1100℃ Slide Lab Tube Furnace

Application

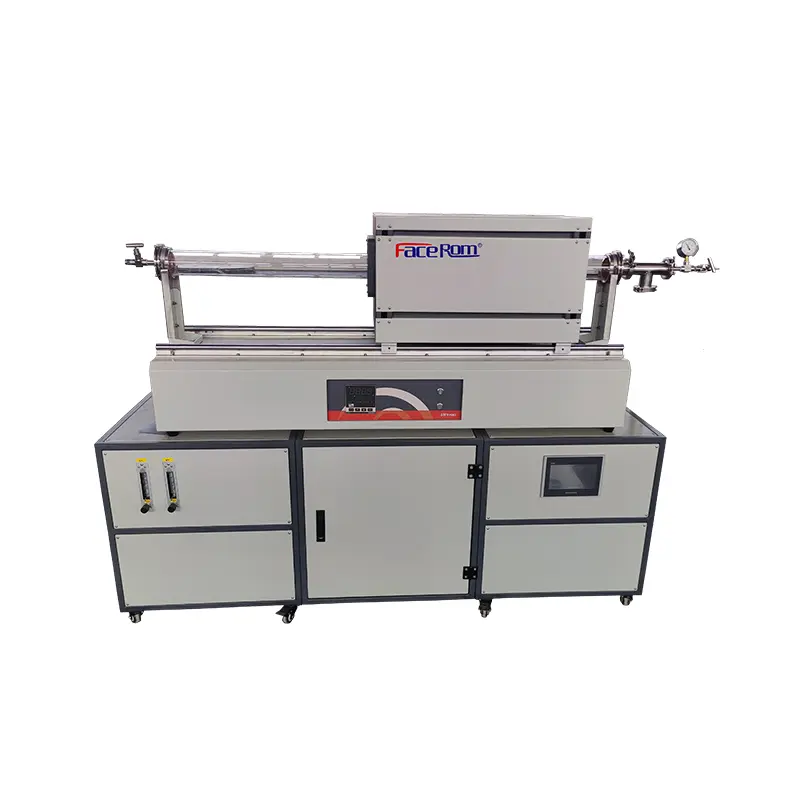

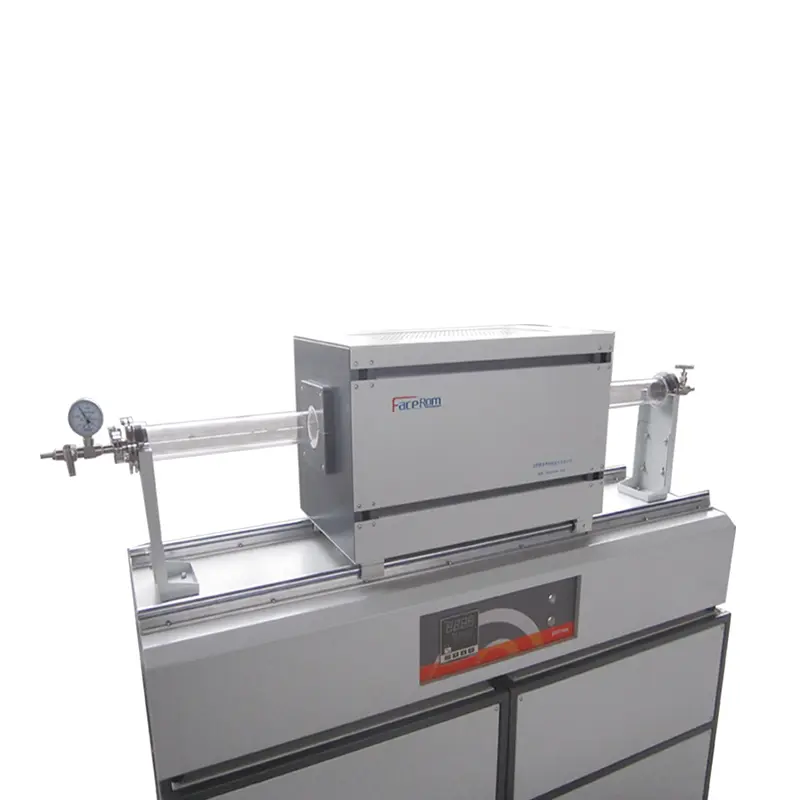

Slide-in tube furnace with integrated structure is designed for special process requirements of rapid heating and cooling up to 1100℃. Rapid cooling is achieved by moving the furnace body. It is also possible to pre-set the temperature and then move to the sample to achieve rapid temperature rise. It is suitable for the widely used RTP process and CVD graphene process.

Features

1. Use temperature RT ~ 1000 ℃;

2. Intelligent programmable temperature controller with precise control, which can edit, store and call multi-segment program;

3. furnace shell structure, double-layer shell air-cooled structure;

4. stainless steel double sealing flange seal;

5. adjustable flange support structure at both ends to extend the service life of the quartz tube;

6. LED high-strength, vandal-resistant, all stainless steel buttons, durable;

7. over-temperature protection function, when the temperature exceeds the allowable set value automatically power off;

8. safety protection when the furnace body leakage automatic power off;

9. K-type thermocouple, accurate temperature control

10. Heating element is ceramic fiber heating module, heating wire embedded structure structure

Additional Options

Vacuum system: (rotary vane mechanical pump, diffusion pump unit, molecular pump unit);

Atmosphere system: (float flow meter, mass flow meter);

Note: options need to be configured to expand the cabinet

Technical Parameters

Notes

1. The dimensions of vacuum unit connections such as flange, furnace tube and flange bracket are not included

2. Other pipe diameters, number of temperature zones and length of heating zones can be customized according to customer's process requirements.
