Applications

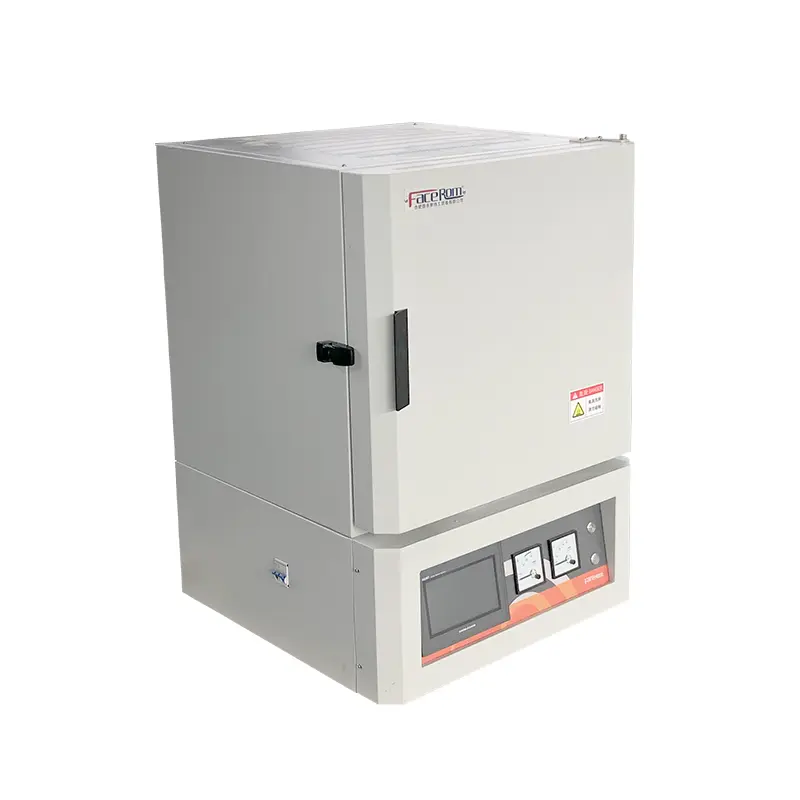

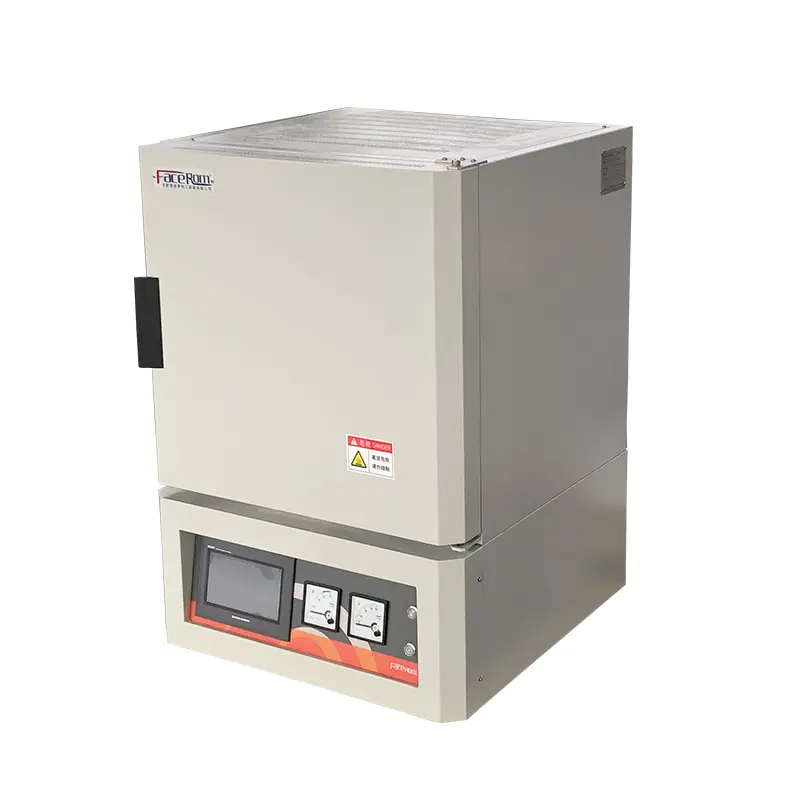

The chamber furnace is integrated design, with delicate and beautiful appearance, the heating element adopts high purity silicon carbon rod, special fixture to fix the heating element, easy to disassemble. Multi-layer vacuum adsorption ceramic fiber furnace chamber, small heat storage, low energy consumption, fast temperature rise, stable temperature control and uniform temperature difference. In multiple experiments, the repeatability and consistency are good, thus gaining wide laboratory applications.
Features
1. Working temperature RT ~ 1300℃
2. Intelligent programmable temperature control instrument can edit, store and call multi-segment program.
3. Over-temperature protection function, automatic power-off when the temperature exceeds the allowed setting value.
4. Safety protection when the furnace body leakage automatic power off.
5. Double-layer furnace shell air-cooled structure, low surface temperature rise.
6. S-type thermocouple, accurate temperature control
7. Heating element is U-type silicon carbon rod
Additional Options
Air intake and exhaust system, movable platform, touch screen remote monitoring, paperless recorder
Technical Parameters
Notes
1.Involving corrosive gases, special volatiles please specify when ordering, other furnace chamber size can be customized according to the customer's process requirements.
2.If add chimney, depth +60mm, height +200mm.
